Accessing the camera WebUI from the Admin Portal

For cameras added over P&P, the users can directly access the Camera WebUI using the Troubleshooting tab in the camera settings. This can allow the user to access and control features of the camera that are not available over ONVIF.

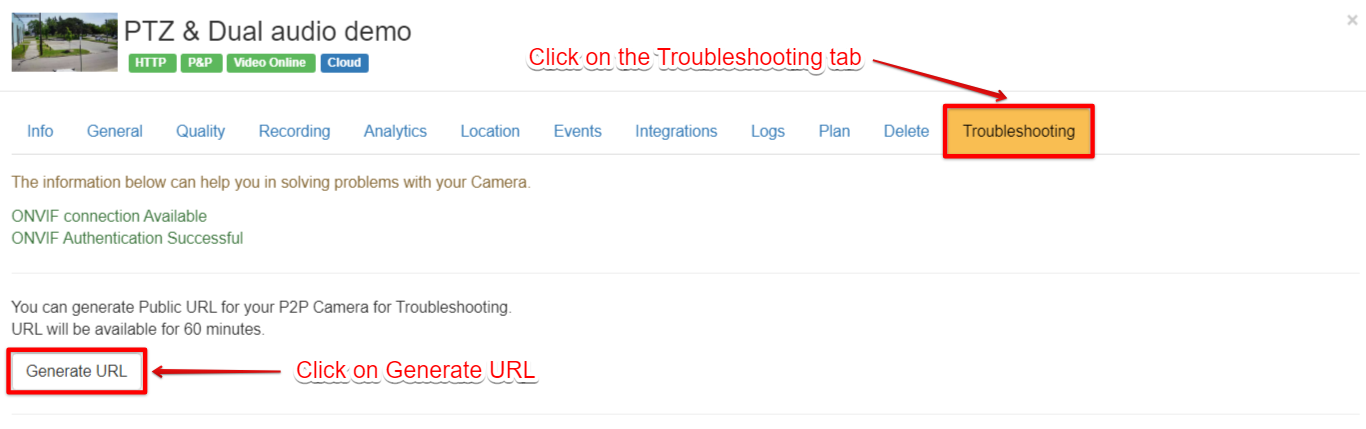

1. Click on the camera device for which you would like to access the WebUI, then click on the Troubleshooting tab.

2. Click on Generate URL to create a web link to the WebUI, which is accessible for 60 minutes (re-generate a new link after 60 minutes if you require more time).

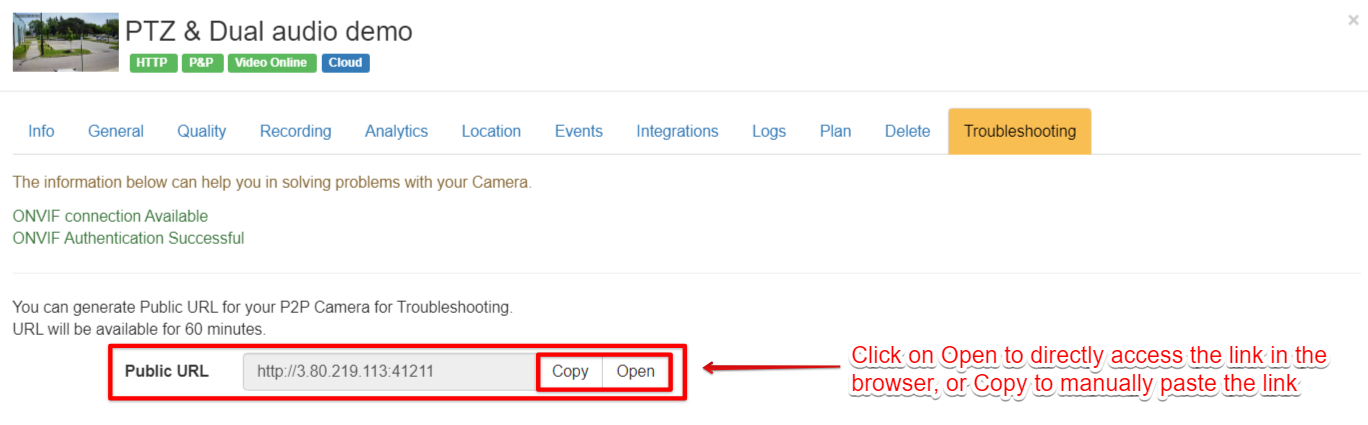

3. Once the Public URL is generated, click on Open to directly open the link in the browser, or click on Copy to manually paste the link in your desired Web tab/window.

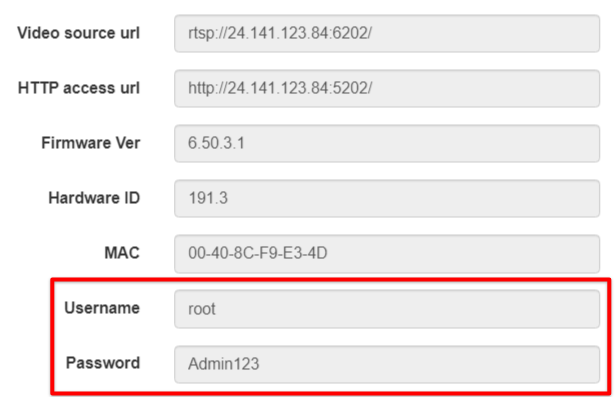

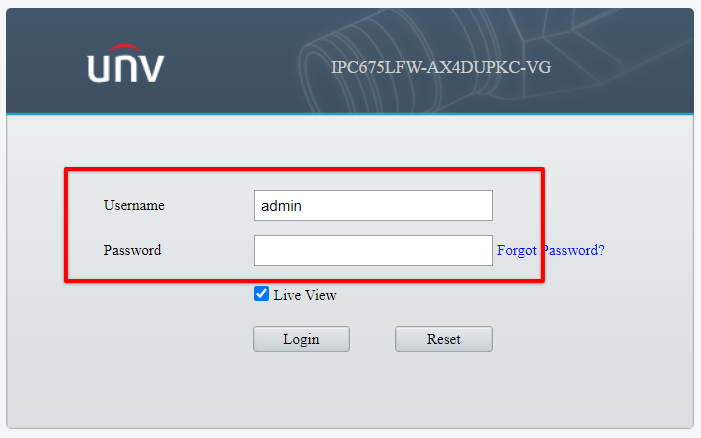

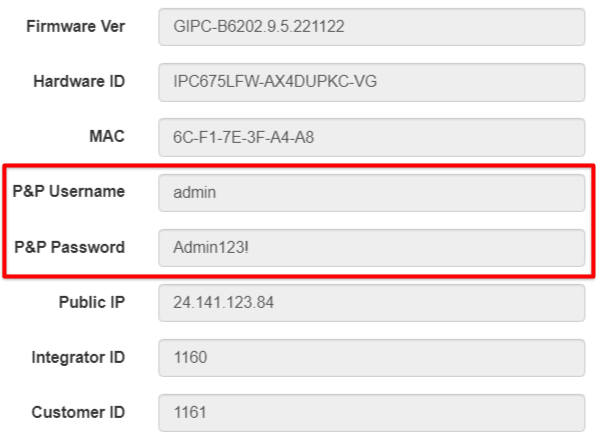

4. Login to the WebUI with the P&P credentials listed in the Troubleshooting tab.


Please be aware that certain cameras may have distinct ONVIF and web access user accounts. In such cases, the login details saved in the admin portal might not be valid. To access these cameras, it is essential to have the correct web UI access credentials.

Note: live video stream will not work for every camera through the generated web link, only the devices that support video streaming through port 80 will show an actual live stream. In case you need to see a live feed from the camera to monitor how the changes are affecting the video feed we recommend opening a video portal to monitor adjustments in real-time.

For cameras added with the ONVIF method, the users can also access the Camera WebUI using the Troubleshooting tab in the camera settings.

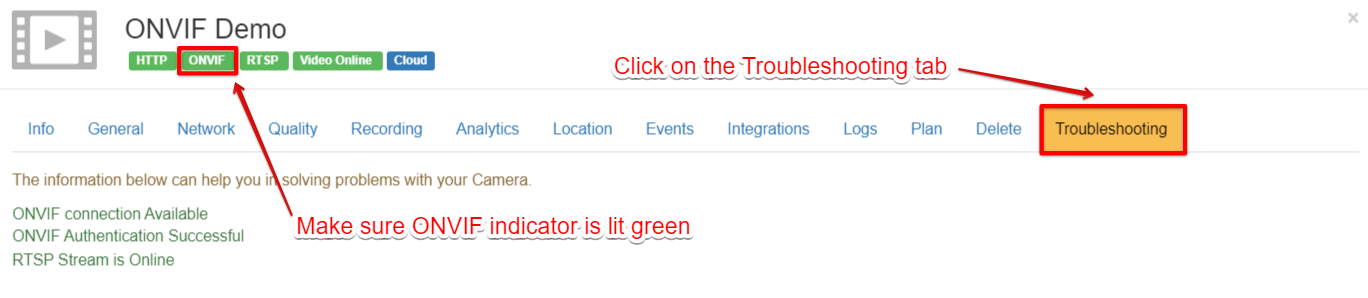

1. Click on the ONVIF camera type device for which you would like to access the WebUI, wait for the camera to load the ONVIF protocol (ONVIF indicator is lit green) and click on the Troubleshooting tab.

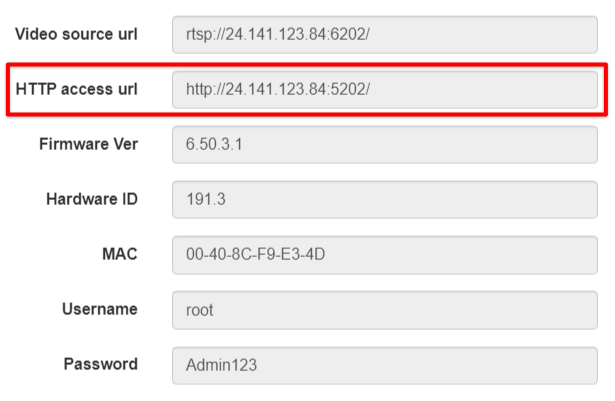

2. Copy the HTTP access URL into your web browser and hit enter.

3. Log into the WebUI with the credentials listed in the Troubleshooting tab.


Note: live video stream will not work for every camera through the generated web link, only the devices that are streaming through port 80 will show an actual live stream. We recommend users to open a video portal feed of the camera to monitor adjustments in real-time.
