To add the push module to InVid cameras please download this firmware↗️ and upgrade your camera using it.
Step 1: Upgrading the Camera using Push Module
To upgrade your camera connect it to the network and navigate to the camera using an internet browser.

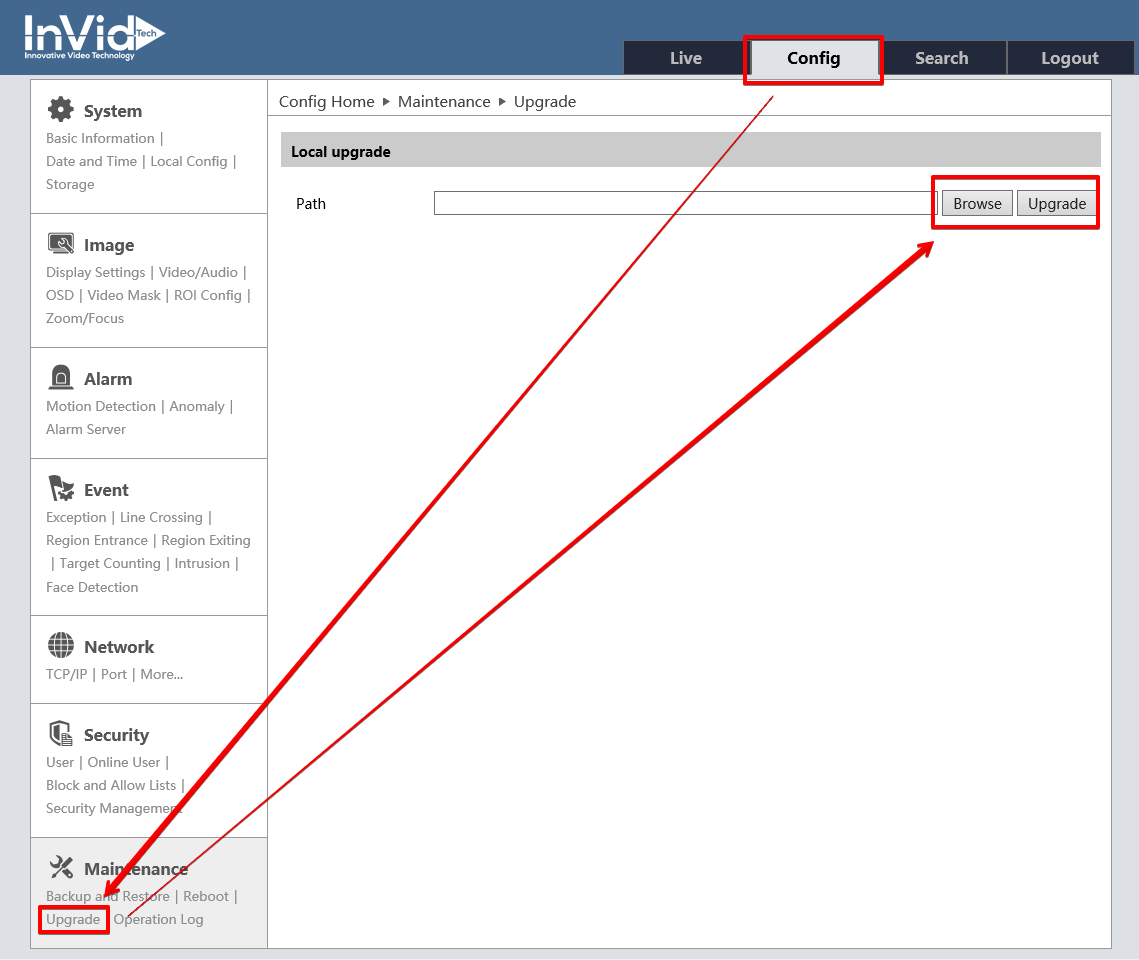

- Go to the Config menu of the camera. From the Maintenance tab click on Upgrade.
- Then click on the Browse button and locate the downloaded firmware file.
- Click upgrade and wait for the camera to finish the upgrade process.

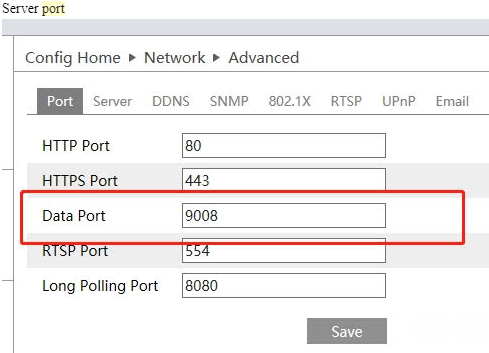

⚠️Note: if doing an upgrade remotely the Data port of the camera has to be port forwarded as well. To update the camera successfully the local and outside ports must match:
Step 2: Updating the Camera Network Settings
From the Config menu go to the Network option and click on the TCP/IP option. Automatic IP (DHCP) mode is recommended. If using a Static IP address make sure that the “Default router” and “Primary DNS server” settings are appropriate for your network.
Step 3: Configuring the Camera's Clock
Also, it is important to ensure that the camera clock is configured correctly.

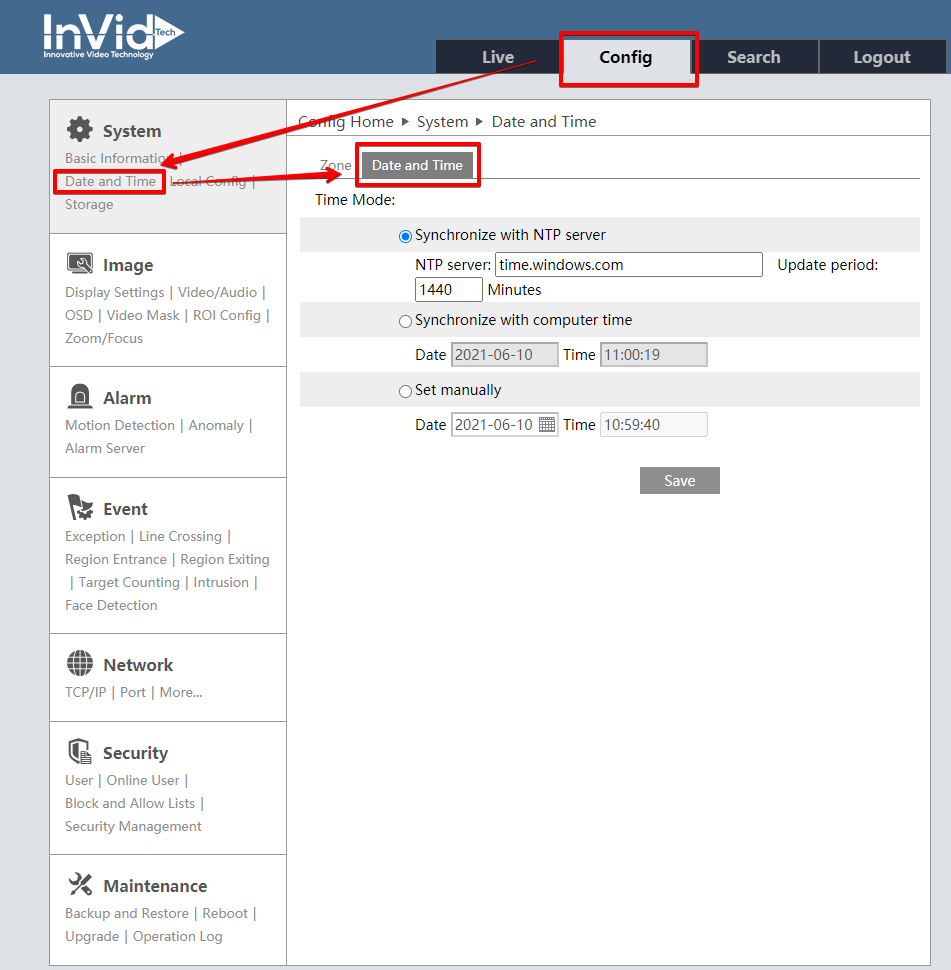

From the Config menu go to the System menu and click on the Date and Time option. Configure time according to your needs making sure that the camera will have the correct clock settings for its location.
Step 4: Finding the Camera's Registration code

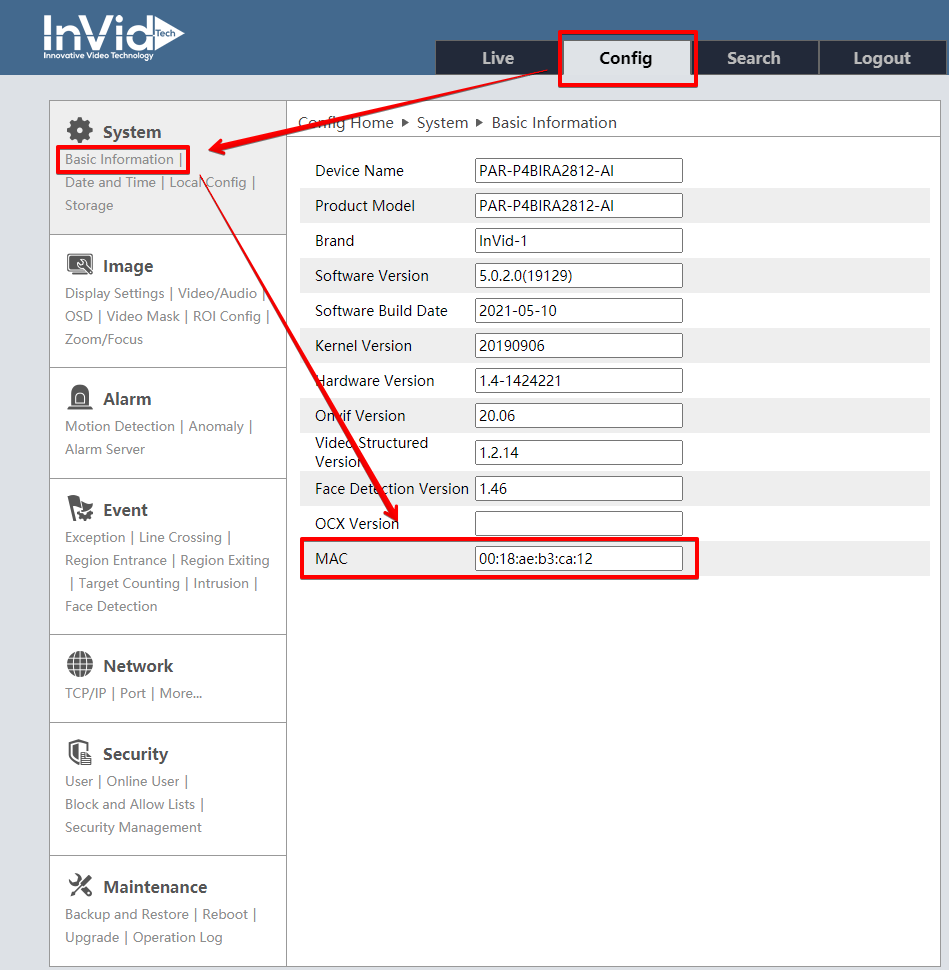

To find the camera's Registration code open the Basic Information page of the camera and copy MAC address. Remove all colons from this sequence and add "tvt" at the beginning of the sequence to obtain the Registration code.
For the above example, the Registration code would be:
tvt0011aabb3344
Step 5: Adding the Camera in the Admin Portal
Add camera in the Admin Portal↗️ using Registration code.

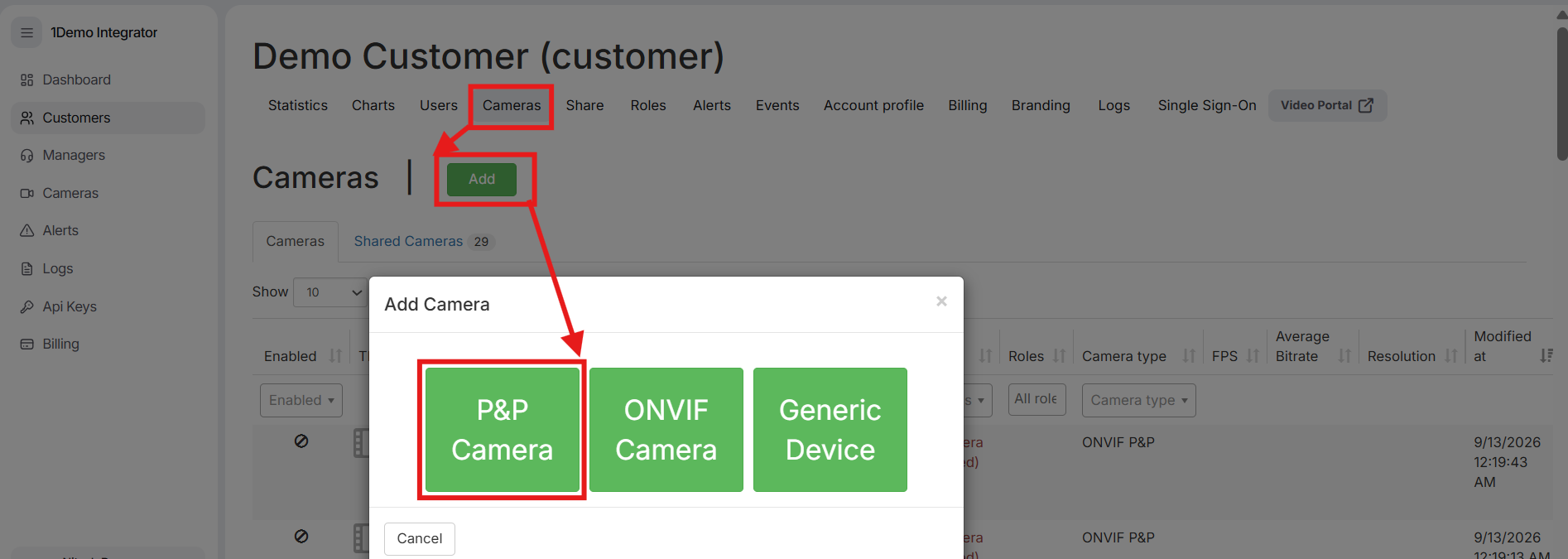

From the Customers table click on the customer to whom you want to add the camera then click on the Cameras menu on the customer menu level and use the Add button to integrate the camera.
In the window that will appear select the P&P Camera option.

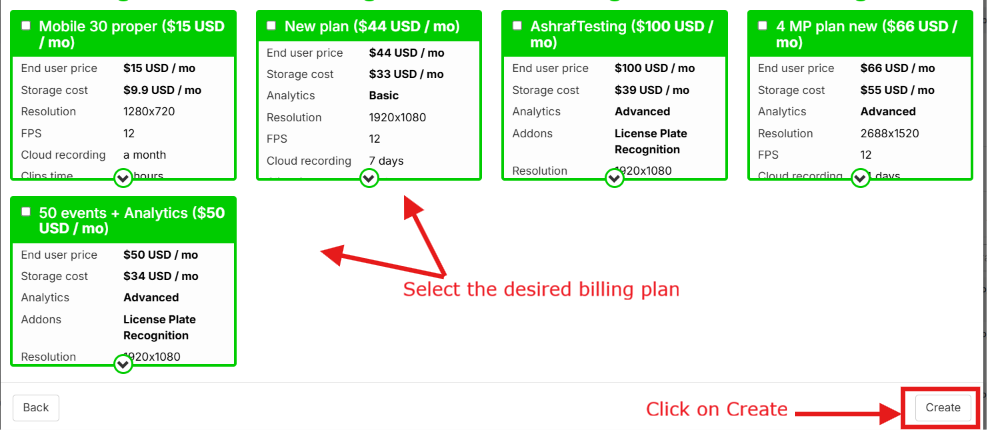

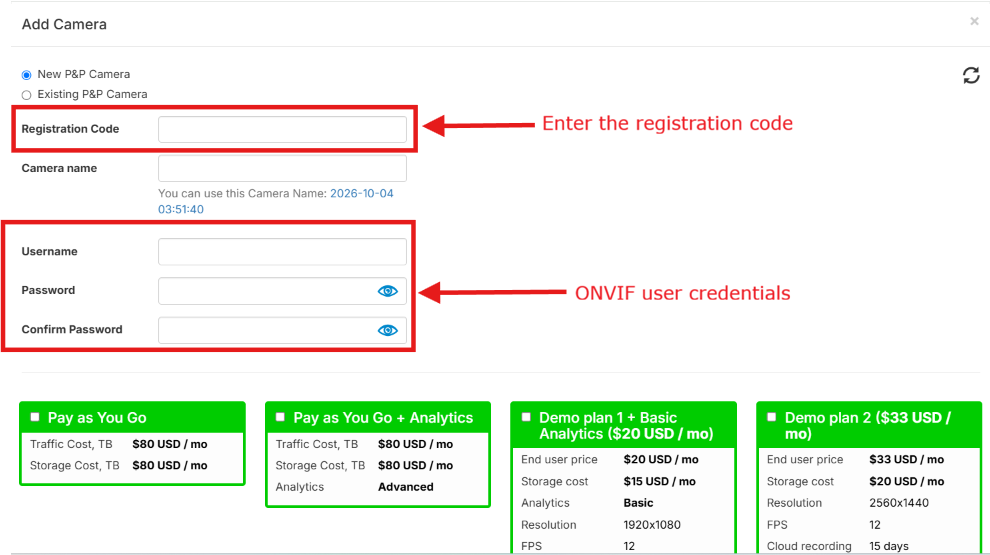

Input the camera's Registration code and provide the camera's user credentials. Next, choose the billing plan and click the Create button.
