To view a list of compatible models and to download the latest firmware with the push module please visit this page:
Raysharp push-enabled cameras↗️
Step 1: Upgrading the Camera using Push Module
To upgrade your camera connect it to the network and navigate to the camera using an internet browser.

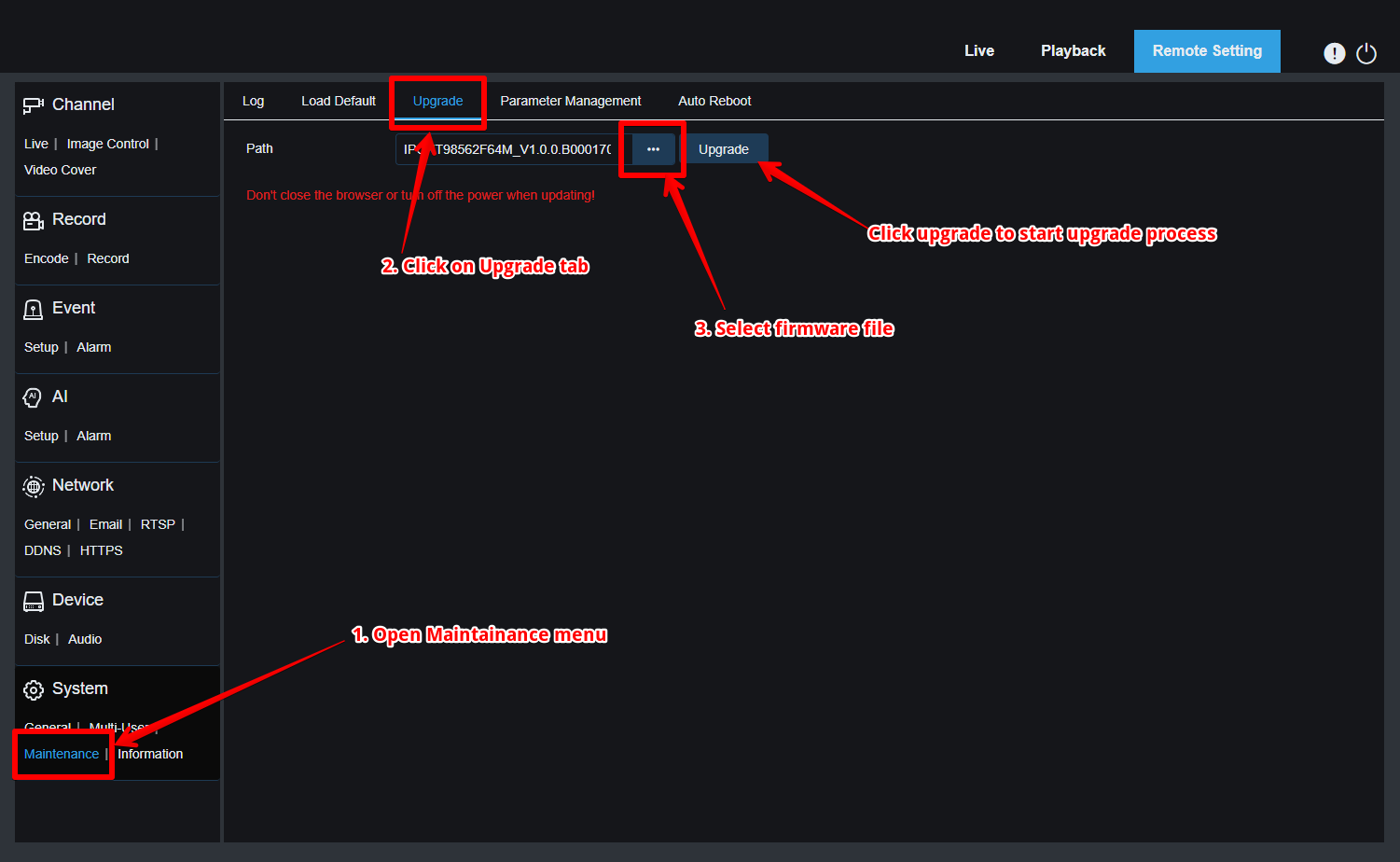

- Go to the Config menu of the camera. From the Maintenance, tab click on the Upgrade tab.
- Then click on the Browse button and locate the downloaded firmware file.
- Click upgrade and wait for the camera to finish the upgrade process.
Step 2: Updating the Camera Network Settings

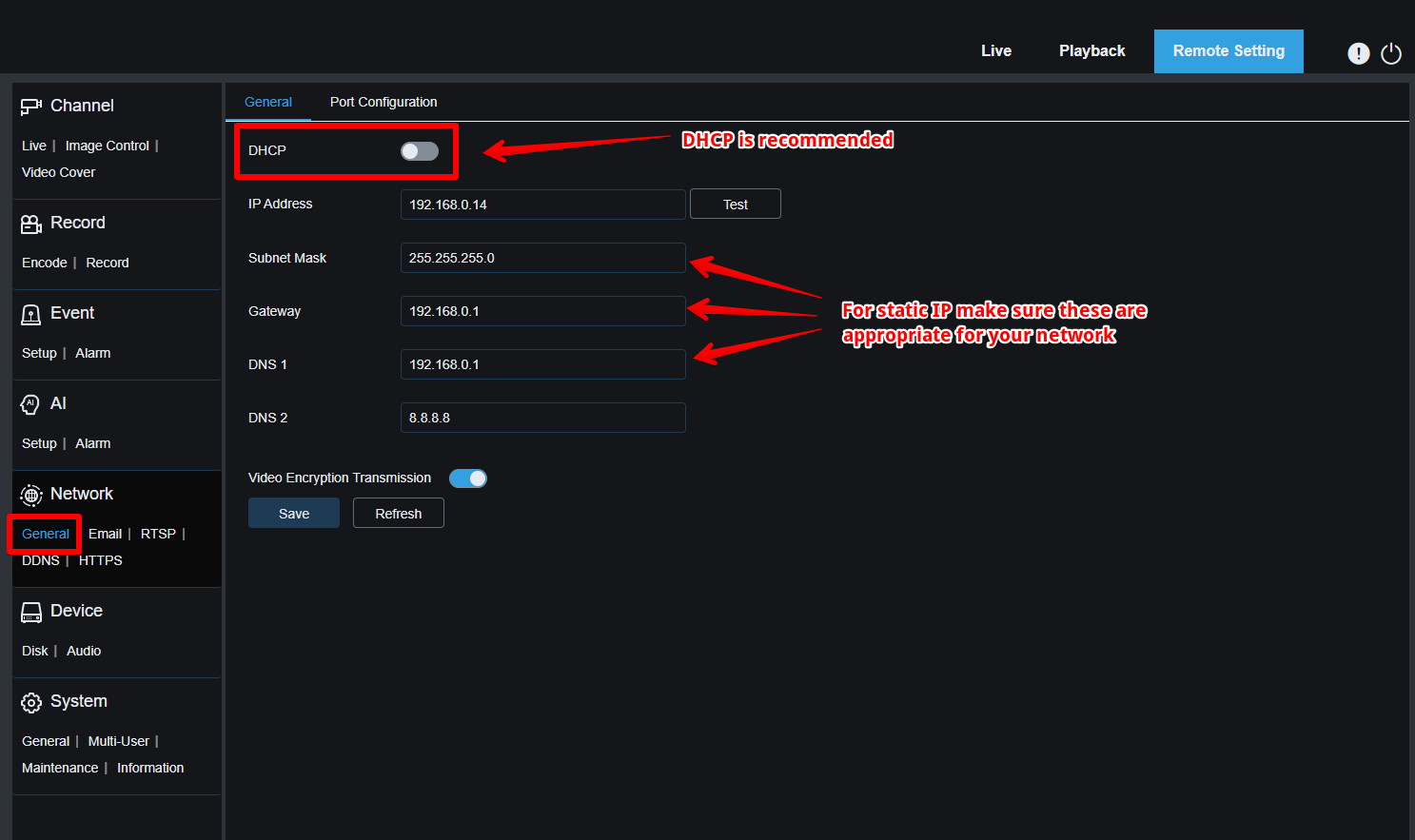

From the Network menu go to the General option. Automatic IP (DHCP) mode is recommended. If using a Static IP address make sure that the “Gateway” and “DNS” settings are appropriate for your network.
Step 3: Configuring the Camera's Clock
Also, it is important to ensure that the camera clock is configured correctly.

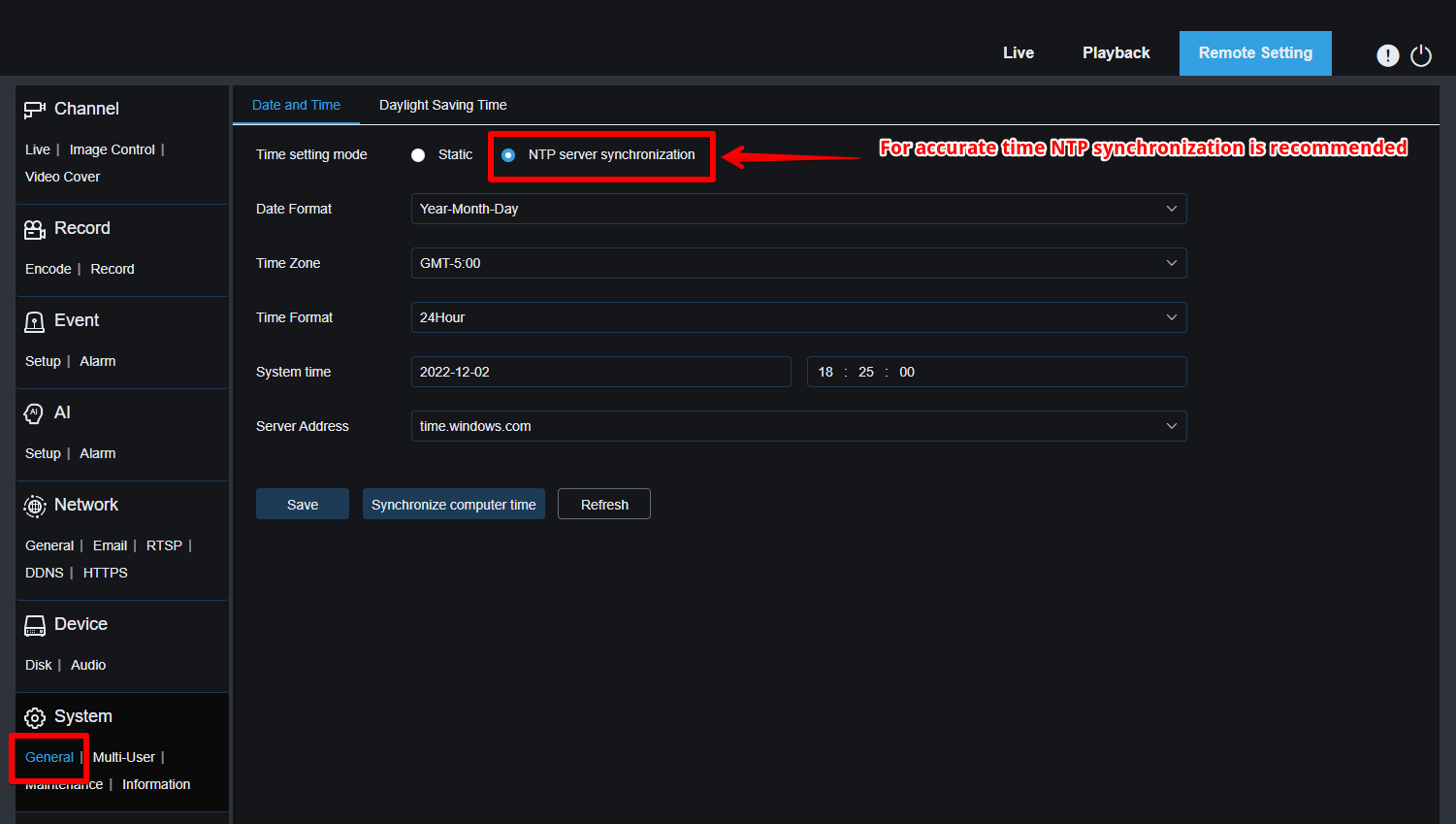

From the System menu go to the General menu and click on the Date and Time option. Configure time according to your needs making sure that the camera will have the correct clock settings for its location.
Step 4: Finding the Camera's Registration code

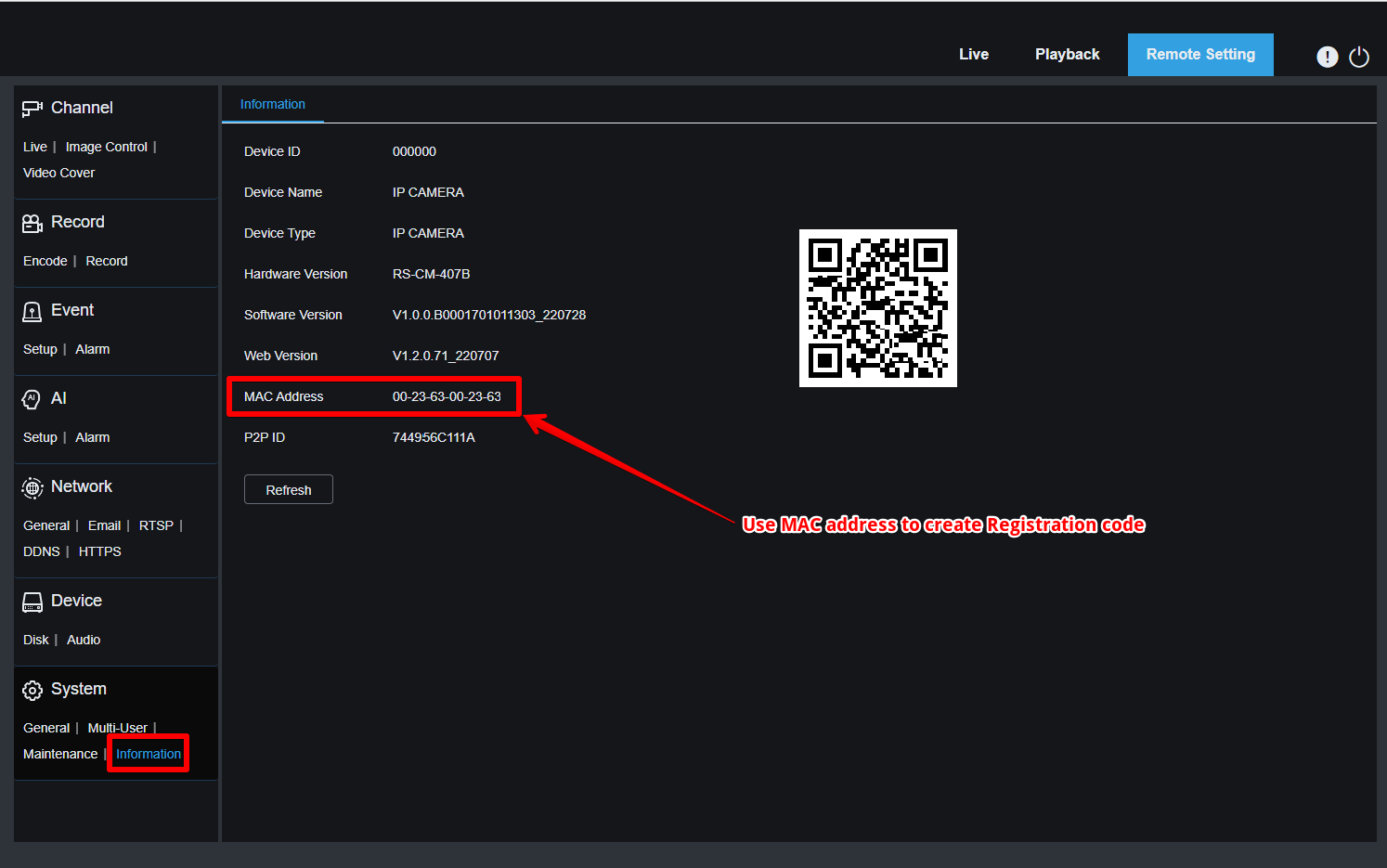

To find the camera's Registration code open the Basic Information page of the camera and copy MAC address. Remove all dashes from this sequence and add "RAYSH" at the beginning of the sequence to obtain the Registration code.
For the above example, the Registration code would be:
RAYSH002363002363
Step 5: Adding the Camera in the Admin Portal
Add a camera in the Admin Portal↗️ using the Registration code.

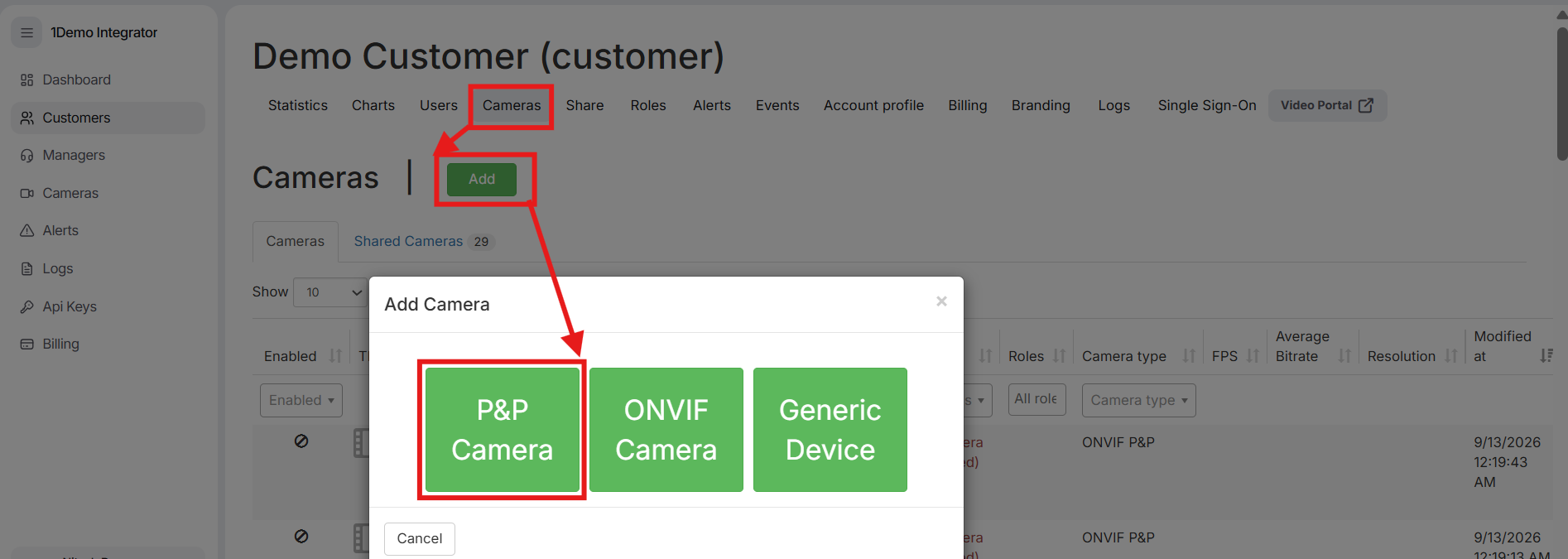

From the Customers table click on the customer to whom you want to add the camera then click on the Cameras menu on the customer menu level and use the Add button to integrate the camera.
In the window that will appear select the P&P Camera option.

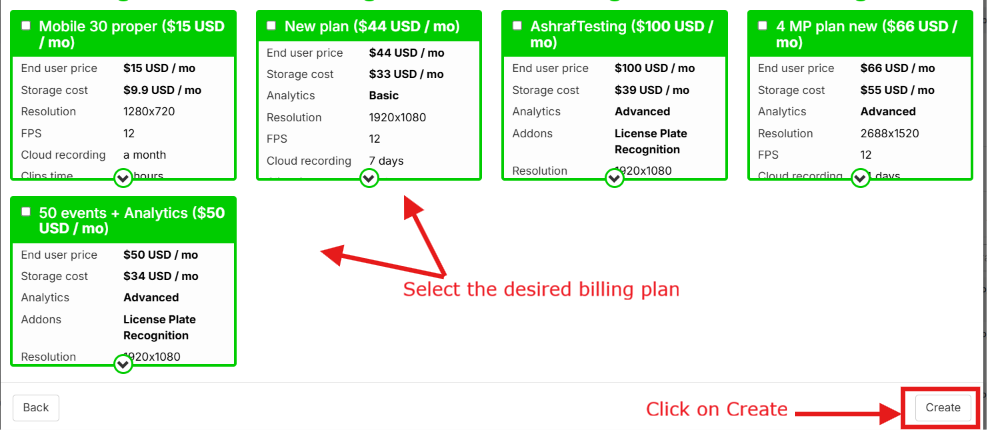

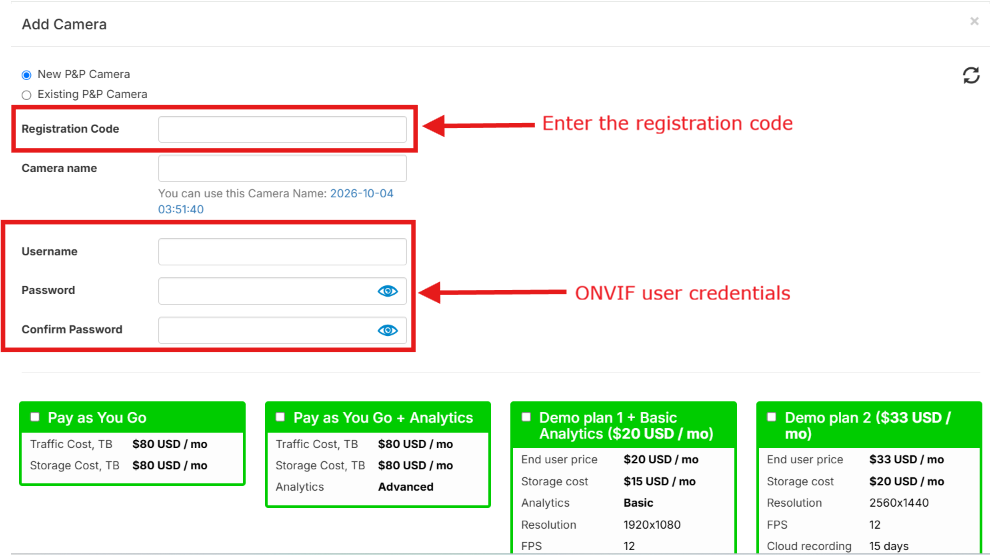

Input the camera's Registration code and provide the camera's user credentials. Next, choose the billing plan and click the Create button.
